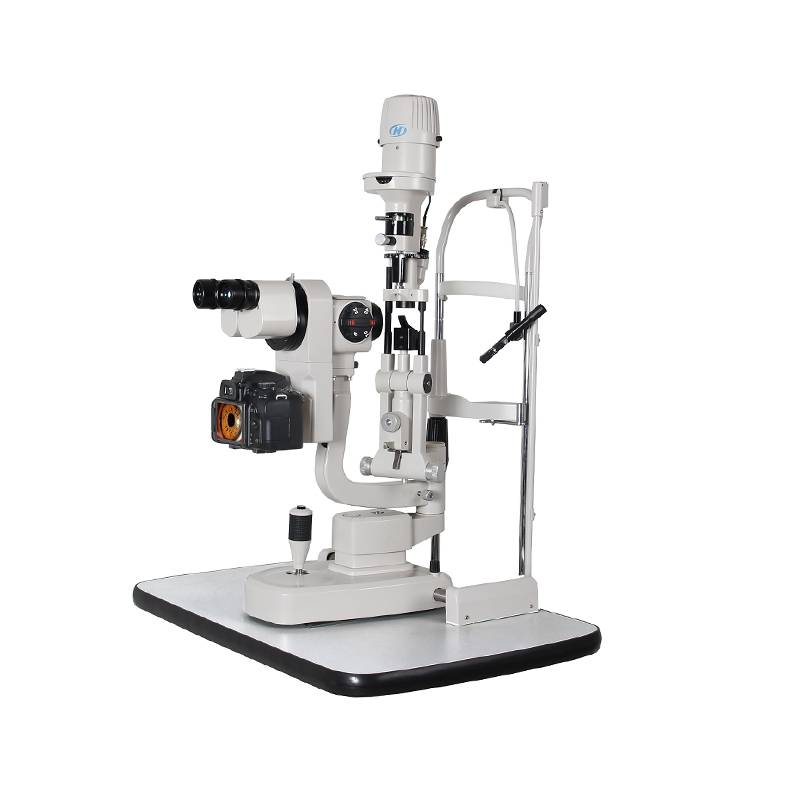

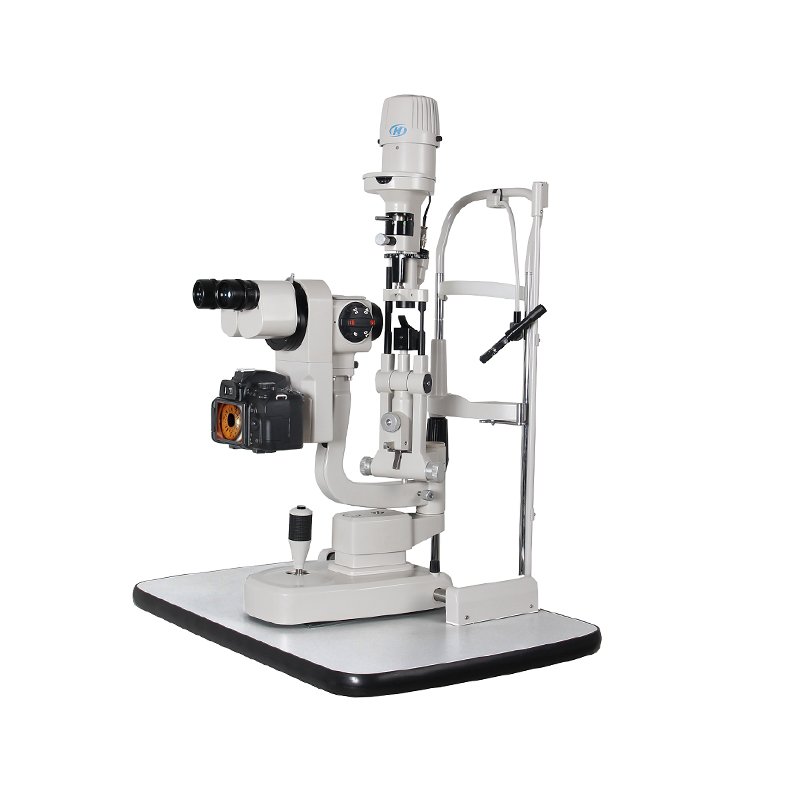

Digital Slit Lamp Microscope SLM-3ER

  • Professional Optics with High Definition Digital SLR Camera (24.1 Mega Pixels);
  • Special Case Storage System
  • Professional Image Analyzing, processing and Management System;
  • Professional Software with High Definition Video Function
  • Background Illumination System;
  • Digital camera AC supply ( camera works normally without battery)

Additional information

Product Details

Microscope TypeGalileo Parallel
Image Capture WayNikon D5200 with high definition DSLR 16.2MP
Synchronous Flash Illumination Compensation SystemOptional
Coaxial Background light systemYes
Magnification Change WayDrum rotating, 5 magnifications
Eyepiece Magnification12.5x
Total Magnifications6x, 10x, 16x, 25x, 40x
Diopter  Adjustment-8D~+8D
Illuminationfive steps (stepness optional)
Slit Width0mm~14mm continuous
Slit Height1mm~14mm continuous
Slit Angle0°~180° adjustable
Slit Inclination Angle5°,10°,15°,20°
Diameter of Light Spotφ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm
FilterHeat Absorption, Grey, Redfree, Cobalt Blue
FixationRed LED
Illumination BulbGerman OSRAM Halogen Tungsten Lamp
Input Voltage110V/220V (+/-10%)
Input Power175VA
Diffuse LensYes
Preset LensYes
Laser InterfaceYes
